Custom Vacuum Tanks & Trucks

Stacks Image 402
MASPORT products are backed by over 100 years of engineering excellence and are specifically designed and engineered to meet the needs of hard working pumpers around the world.
Stacks Image 17781
Precise machining and assembly
End Thrust Protection
- Prevents rotor-to-endcover contact created by direct PTO drive or misaligned belt driven systems
Integral valve
- Allows pump to operate in vacuum & pressure modes
Mechanical pump oil
- Automatic oiling
- No adjustment required
- Delivers proper amount of oil at all working levels
Double end shaft
- Accommodates CW or CCW drive systems
Viton oil seals for longer service life
Kevlar vanes are heat stabilized and machined with exacting tolerance for superior durability
Liquid-cooled design (HXL400WV, HXL15WV, HXL75WV only)
- Reliability during extreme weather conditions
- Continuous operation at 25"Hg
Solid 6-vane rotor design (HXL400WV only)
- Higher airflow efficiency
- Higher dead head vacuum
- Less vane wear
- Less noise
- Less cylinder wear
- Less Vibration

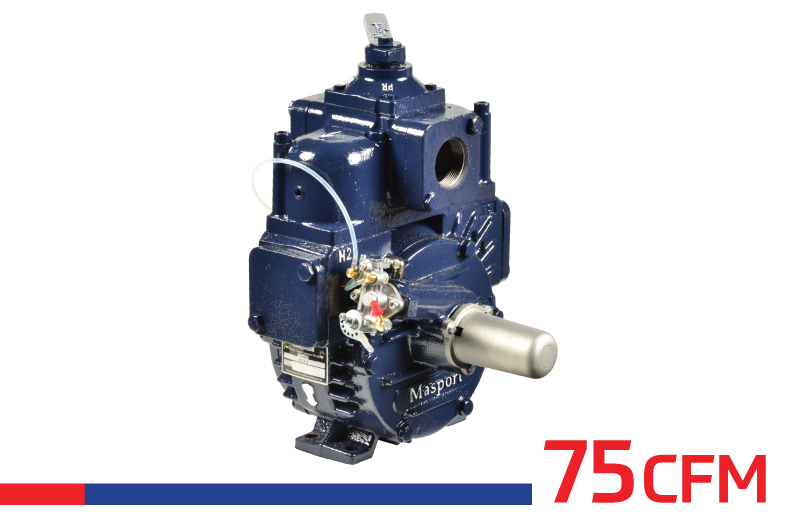

HXL2V
RPM: 1225, 1425, 1750
CFM: 53-75
Hose Size: 1.5"
Maximum Vacuum: 27" Hg

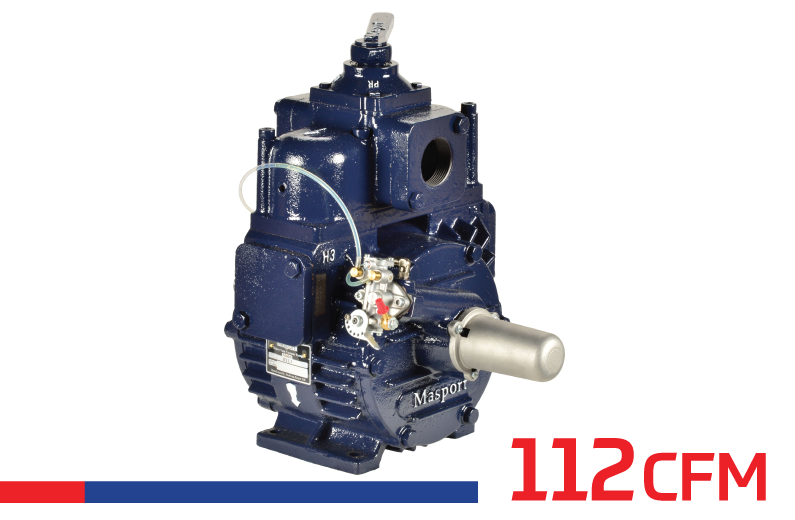

HXL3V
RPM: 1225, 1425, 1750
CFM: 78-112
Hose Size: 1.5"
Maximum Vacuum: 27" Hg

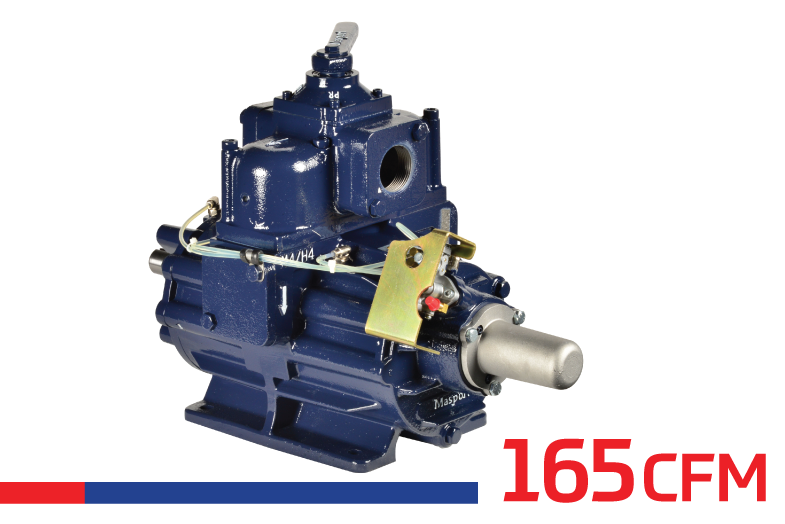

HXL4V
RPM: 1100, 1225, 1400
CFM: 122-156
Hose Size: 1.5"
Maximum Vacuum: 27" Hg

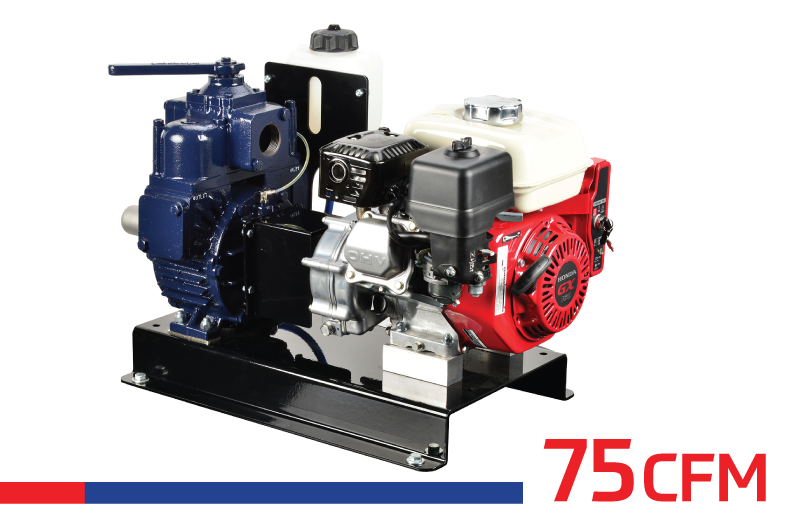

Pro Pack 750
RPM: 1225, 1425, 1750
CFM: 53-75
Hose Size: 1.5"
Maximum Vacuum: 27" Hg

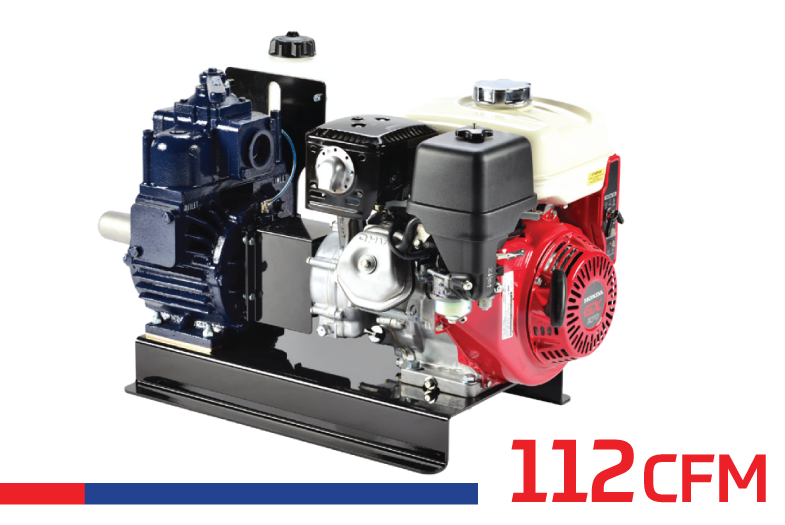

Pro Pack 1000
RPM: 1225, 1425, 1750
CFM: 78-112
Hose Size: 1.5"
Maximum Vacuum: 27" Hg
Pro Pack 1500
RPM: 1100, 1225, 1400
CFM: 122-156
Hose Size: 1.5"
Maximum Vacuum: 27" Hg

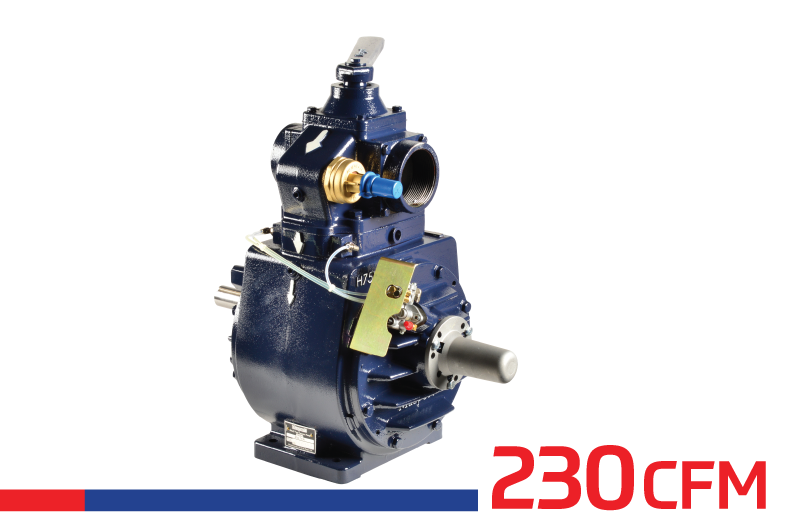

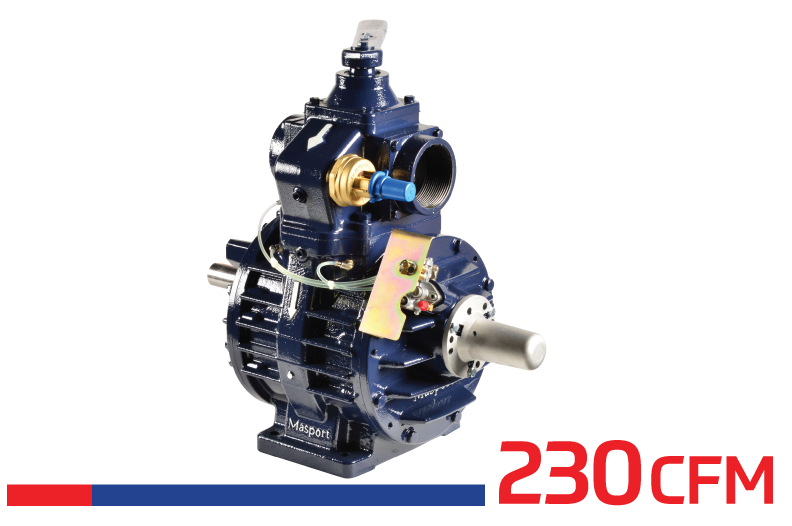

HXL75V
RPM: 1100, 1275
CFM: 196-230
Hose Size: 2.5"
Maximum Vacuum: 27" Hg
HXL75WV
RPM: 1100, 1275
CFM: 196-230
Hose Size: 2.5"
Maximum Vacuum: 27" Hg

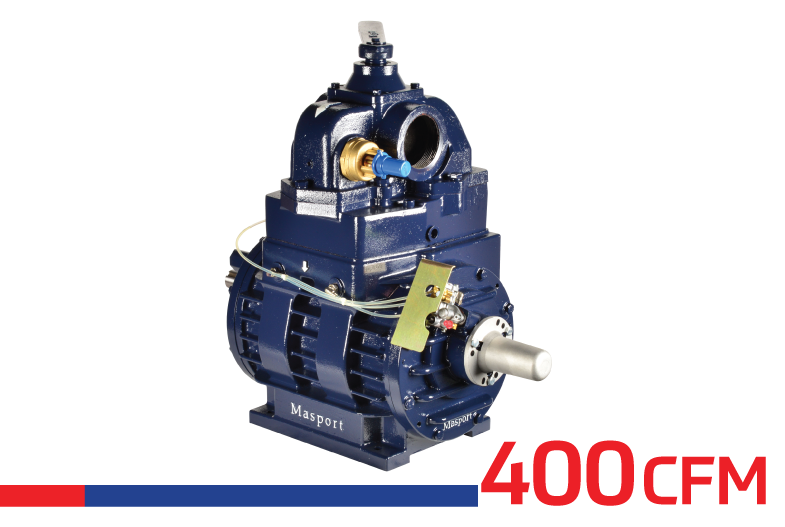

HXL400WV Vacuum Pump
RPM: 1100, 1275
CFM: 345-400
Hose Size: 3"
Maximum Vacuum: 27" Hg

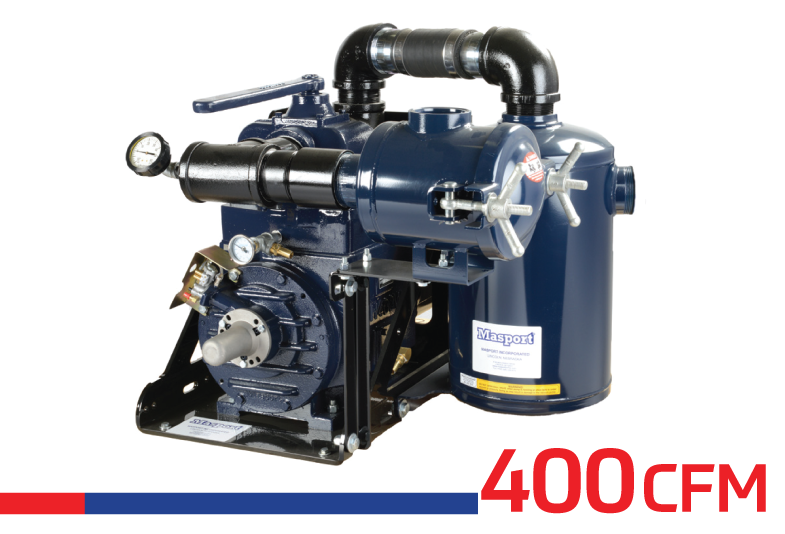

HXL400WV Tractor Pack
RPM: 1100, 1275
CFM: 345-400
Hose Size: 3"
Maximum Vacuum: 27" Hg

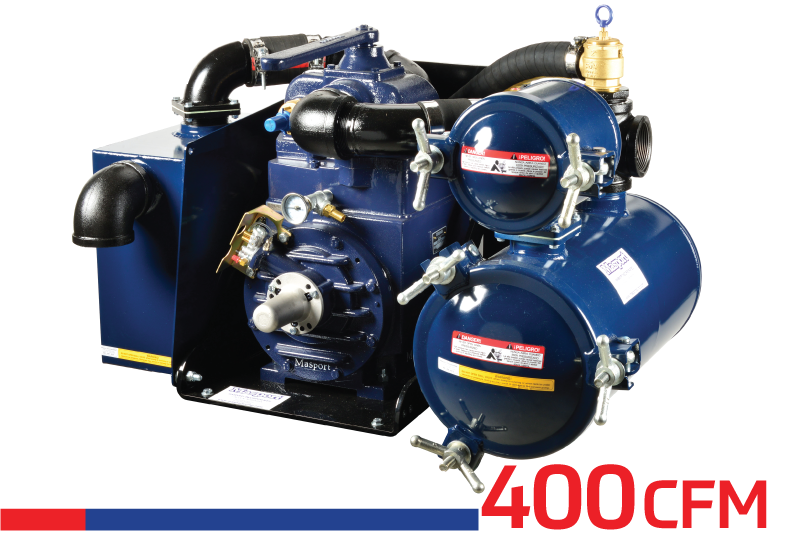

HXL400WV Plug & Play
RPM: 1100, 1275
CFM: 345-400
Hose Size: 3"
Maximum Vacuum: 27" Hg

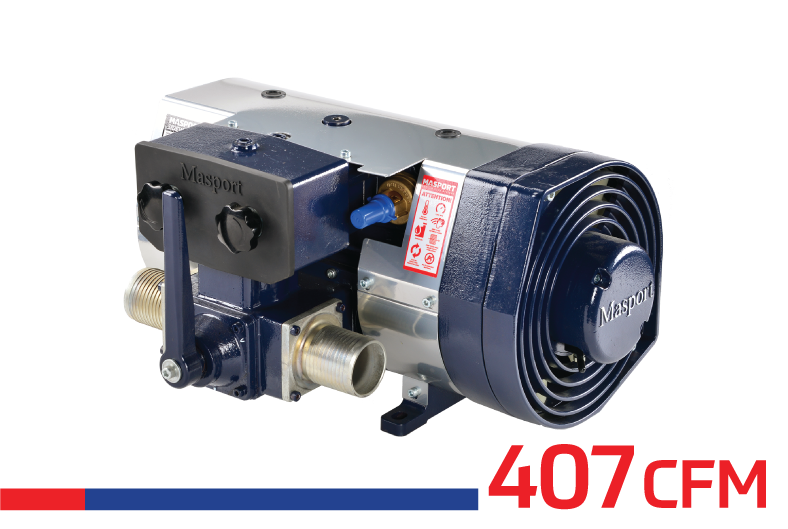

TITAN
RPM: 1200, 1400
CFM: 343-407
SIDEWINDER
RPM: 1200, 1400
CFM: 343-407

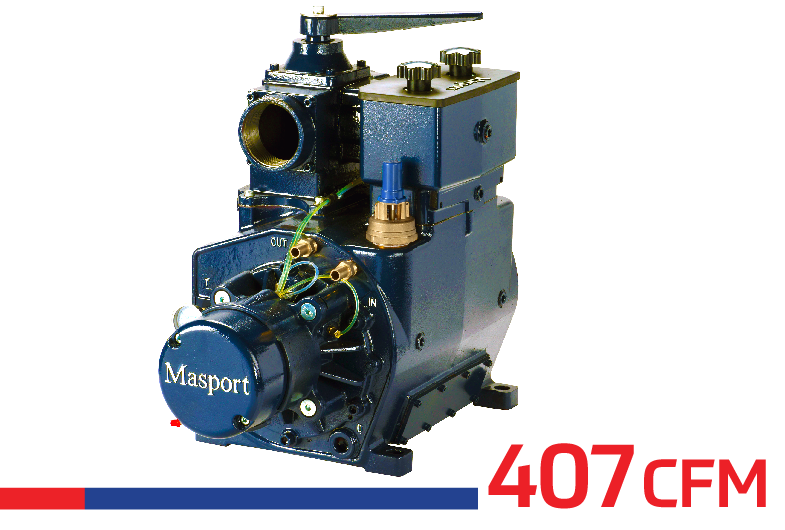

Hydra
RPM: 1200, 1400
CFM: 407
Hose Size: 3" NPT Flanges
Maximum Vacuum: 27" Hg

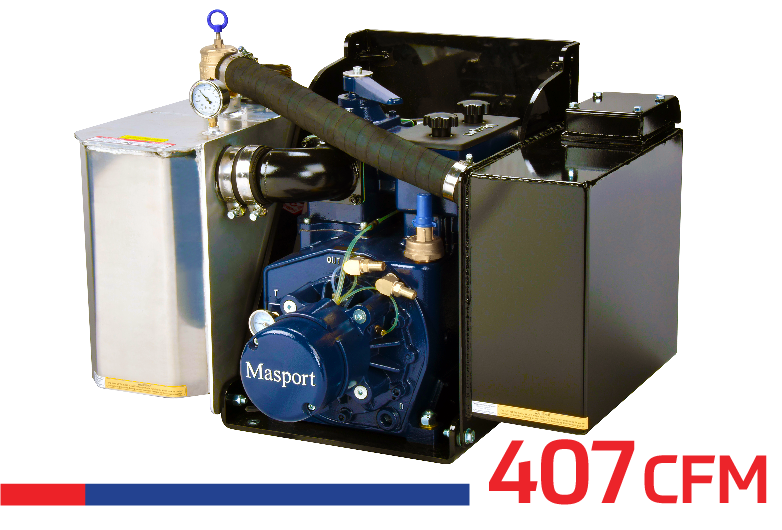

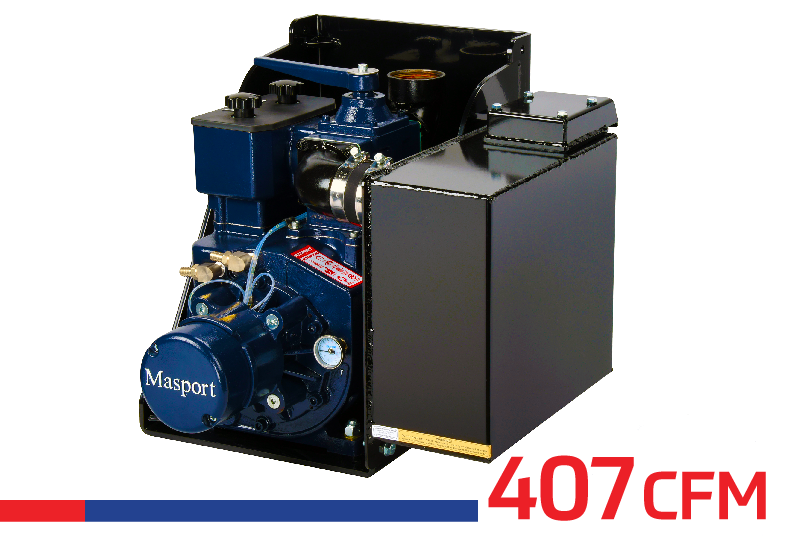

Hydra Tractor Pack
RPM: 1200, 1400
CFM: 407
Hose Size: 3"
Maximum Vacuum: 27" Hg
Hydra Plug & Play
RPM: 1200, 1400
CFM: 407
Hose Size: 3"
Maximum Vacuum: 27" Hg
