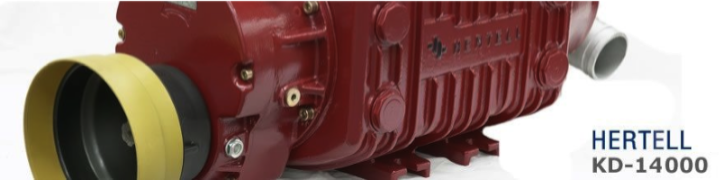

KD-14000
KD-14000 is a water-cooled vacuum pump with gearbox for 540 or 1000 rpm for drive (DIN 9611 1"3/8). These pumps are designed for hydraulic drive as well.
These water-cooled vacuum pumps are designed to be installed on large volume tanks or any application with long vacuum and pressure operation times.
These water-cooled vacuum pumps are designed to be installed on large volume tanks or any application with long vacuum and pressure operation times.
Features
Steel-like
Rotor and body are constructed of steel-like GGG - three times more rust-resistant than cast iron.
Rotor and body are constructed of steel-like GGG - three times more rust-resistant than cast iron.
Oil Pump
KD/KDP Series models come standard with an oil pump, providing lubrication under both vacuum and pressure operation.
KD/KDP Series models come standard with an oil pump, providing lubrication under both vacuum and pressure operation.
Water pump
The KD-14000 is equipped with a water pump connected to the rotor for cooling.
The KD-14000 is equipped with a water pump connected to the rotor for cooling.
Double outlet
Double outlet with separate vacuum and pressure pipes is available. This accessory allows you to install a pneumatic mixer in the tank. Available on all KD series pumps.
Double outlet with separate vacuum and pressure pipes is available. This accessory allows you to install a pneumatic mixer in the tank. Available on all KD series pumps.
Hydraulic change over
An optional hydraulic change over actuator is available for the change over valve on al KD series pumps.
An optional hydraulic change over actuator is available for the change over valve on al KD series pumps.

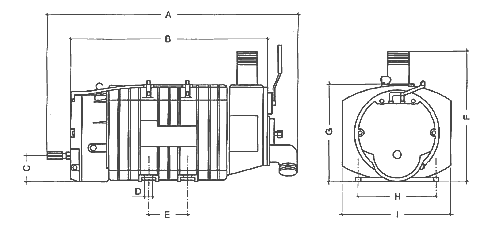

Dimensions
A
B
C
D
E
F
G
H
I
35.2"
26.6"
3.7"
0.8"
5.5"
18.1"
13.4"
11.0"
13.4"
Pricing & Specifications For ordering, simply click the model number or price.
